Product Description:

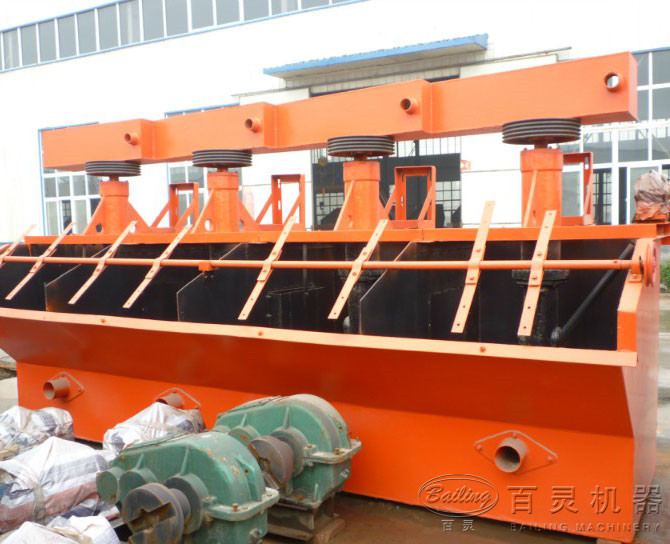

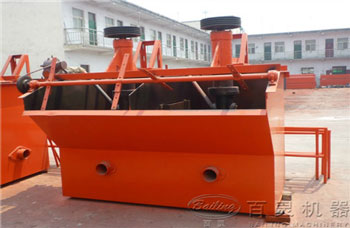

Agitation impeller type flotation machine is used for separating ferrous metals, as well as non ferrous metals like coal, fluorite and talc. It has characteristics like large quantity air inflow and low energy consumption.

Flotation machine of this series adopts U-type chutes, hollow shaft, suspension rotor and especially a new type impeller, which is of large pulp tranmission, simple structure and low energy consumption. Air distributors are set up in the cavity, which allow air to disperse loosely on the impeller so as to enlarge their contact surface. Every chute performs three functions: inhaling air, inhaling ore pulp and flotation separation without accessories.

Features:

1.Large quantity air inflow; low energy consumption.
2.Every chute is levelly installed and performs three functions: inhaling air, inhaling ore pulp and flotation separation without accessories.
3.Ore pulp circulate reasonably, which largely reduce the sediment of coarse sand.
4.Self-control device is set up to adjust the ore pulp surface.
5.The impeller is with backward inclined upper and lower blades. The upper blade produces ore pulp upper circulation while the lower blade produces ore pulp lower circulation.
