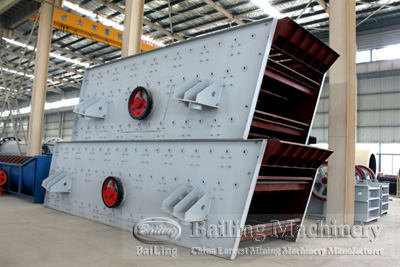

Circular vibrating screen

Circular vibrating screen

Capacity (m3/h): 35-258
Frequency (r/min): 970
Delivery: 15-30 days


Production Description:

The vibrating screen moves in a circular motion with multiple layers and high efficiency. The vibrating screen is designed with the barrel type of eccentric shaft vibration exciter and eccentric block to adjust the swing. It is manufactured with long material screen rifling and many screen specifications.


1. Ring groove rivet connection, advanced structure and excellent durability.
2. Designed with a simple structure, with eccentric block as excitation, strong vibrating force, low electricity consumption and low noise.
3. Uses small amplitude, high frequency and big angle structure which enables it to have high screening efficiency and great handling capacity.
4. Uses large clearance bearings and is lubricated with thin oil. It causes little noise and has a long service life.
