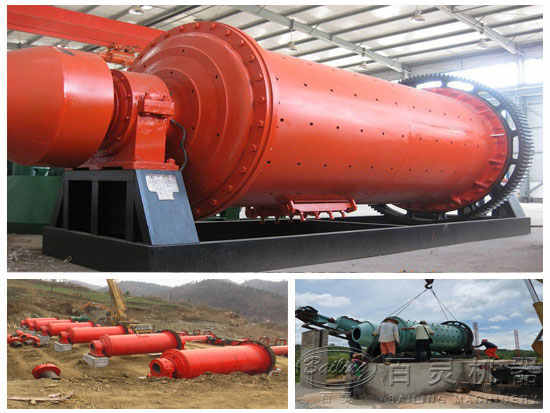

Aluminium grinding ball mill
| Feeding size: | ≤20(mm) |
| Discharging size: | 0.074-0.4(mm) |
| Power: | 18.5-800(kw) |
Introduction
Product Description:
Aluminium powder, commonly known as silver powder, can be used to identify fingerprints, also can be used to make the fireworks .Aluminum is widely used and has many varieties, it is one of the categories of metallic pigment. Former production method of aluminium powder is pounding –impact, now widely used method is known as ball mill dry process grinding.
Bearing adopts oil lubrication system, thus help bearing internal dirt cleaning and reduce the bearing attrition during normal operation. Bailing ball mill reduces replacement frequency of easily damaged parts at the most extent.lining plates 、steel balls are made of high chrome steel，which is very wear-resistiing and durable, brings a lot of advantages for ball mill’s maintenacne and working.
Features:
1.Main bearing adopts large diameter double biserial roller bearing, with easy maintenance and high efficiency.
2.Discharging end adopts cone design, thus strengthen the mill,forces grading of steel balls. More closer to the discharging end, steel balls’ diameter is more smaller, grinding particles are more smaller
3.Adopts overall steel chassis,with high precision and easy installation
4.Combined feeder is cancelled, adopts drum feeder, without impact force, thus machine runs smoothly, reduce maintenance frequency, improves production efficiency
Aluminium powder, commonly known as silver powder, can be used to identify fingerprints, also can be used to make the fireworks .Aluminum is widely used and has many varieties, it is one of the categories of metallic pigment. Former production method of aluminium powder is pounding –impact, now widely used method is known as ball mill dry process grinding.
Bearing adopts oil lubrication system, thus help bearing internal dirt cleaning and reduce the bearing attrition during normal operation. Bailing ball mill reduces replacement frequency of easily damaged parts at the most extent.lining plates 、steel balls are made of high chrome steel，which is very wear-resistiing and durable, brings a lot of advantages for ball mill’s maintenacne and working.
Features:
1.Main bearing adopts large diameter double biserial roller bearing, with easy maintenance and high efficiency.
2.Discharging end adopts cone design, thus strengthen the mill,forces grading of steel balls. More closer to the discharging end, steel balls’ diameter is more smaller, grinding particles are more smaller
3.Adopts overall steel chassis,with high precision and easy installation
4.Combined feeder is cancelled, adopts drum feeder, without impact force, thus machine runs smoothly, reduce maintenance frequency, improves production efficiency
Parameter
| Type |
Cylinder speed (r/min) |
balls' weight (t) |
Feeding size (mm) |
Particle size (mm) |
Capacity (t/h) |
Motor power
(kw) |
Weight (t) |
| Ф900×1800 | 36～38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 4.6 |
| Ф900×3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.6 |
| Ф1200×2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| Ф1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| Ф1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ф1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 15.6 |
| Ф1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ф1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| Ф1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
| Ф1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 32 |
| Ф1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| Ф1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
| Ф2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34 |
| Ф2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 42 |
| Ф2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 50 |
| Ф2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
| Ф2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| Ф2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
| Ф2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
| Ф2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 54 |
| Ф2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| Ф2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 400 | 94 |
| Ф2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
| Ф3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 |
According to technological conditions |
800 | 137 |
