Introduction
Product Description:

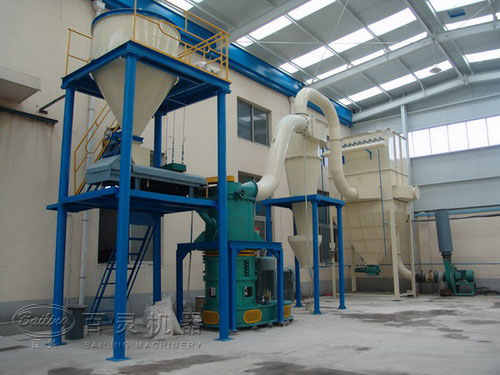

Raymond mill is a common milling equipment for all kinds of mineral powder production、coal powder production, it is widely used for fine grinding of raw material、gypsum mine、coal, etc.
Features:
1.stereochemical structure, less occupied area、complete set, from raw material to final product is an independent production system.
2.final particles are even, sieving rate can reach 99%, which is incomparable.
3.gearing adopts closed gearbox and belt wheel, smooth transmission and reliable.
4.key parts are made of high quality steel, wear-resistant parts are made of high-performance wear-resistant materials, the machine is very wearable, with reliable operation.
5.electric system adopts centralized control, milling workshop can achieve unattended operation with convenient maintenance
Raymond mill is a common milling equipment for all kinds of mineral powder production、coal powder production, it is widely used for fine grinding of raw material、gypsum mine、coal, etc.
1.stereochemical structure, less occupied area、complete set, from raw material to final product is an independent production system.
2.final particles are even, sieving rate can reach 99%, which is incomparable.
3.gearing adopts closed gearbox and belt wheel, smooth transmission and reliable.
4.key parts are made of high quality steel, wear-resistant parts are made of high-performance wear-resistant materials, the machine is very wearable, with reliable operation.
5.electric system adopts centralized control, milling workshop can achieve unattended operation with convenient maintenance
Parameter
| Type |
Number of roller (pcs) |
Roller size (mm) |
Inside diameter and height of ring (mm) |
Max feed size (mm) |
Fineness of product
(mm) |
Capacity (t/h) |
Motor power
(kw) |
Weight (t) |
Overall size (mm) |
| 3R1510 | 3 | 150*100 | 570*100 | 15 | 0.2-0.044 | 0.3-1.2 | 7.5 | 2.0 | 3200*2100*3800 |
| 3R2115 | 3 | 210*150 | 630*150 | 15 | 0.2-0.044 | 0.4-1.6 | 15 | 3.6 | 4500*2800*5800 |
| 3R2615 | 3 | 260*150 | 780*150 | 20 | 0.2-0.044 | 0.8-2.5 | 18.5 | 4.2 | 5650*3305*3950 |
| 3R2715 | 3 | 270*150 | 830*150 | 20 | 0.2-0.044 | 0.9-2.8 | 22 | 4.8 | 5600*3400*5900 |
| 3R3015 | 3 | 300*150 | 875*150 | 20 | 0.2-0.044 | 1.2-3.5 | 30 | 5.3 | 5700*3500*5900 |
| 4R3016 | 4 | 300*160 | 890*160 | 20 | 0.2-0.044 | 1.2-4 | 30 | 8.5 | 6500*4100*5200 |
| 4R3216 | 4 | 320*160 | 970*160 | 25 | 0.2-0.044 | 1.8-4.5 | 37 | 15 | 9900*5800*10580 |
| 4R4121 | 5 | 410*210 | 1280*210 | 30 | 0.2-0.044 | 3-9.5 | 75 | 24 | 7900*8000*9700 |
