Introduction
Product Description:

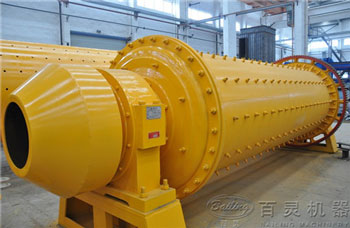

Ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.
Features:
1. low power consumption
2. simple structure, easy operation
3. werable lining plates
Ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.
Features:
1. low power consumption
2. simple structure, easy operation
3. werable lining plates
Parameter
| Model | Type |
Capacity (t/h) |
Rotational speed (r/min) |
Balls weight (t) |
Power (kw) |
Main reducer |
Weight (t) |
| MQG1245 | 1200×4500 | 1.4-2 | 35 | 5.2 | 45 | ZD30 | 12 |
| MQG1557 | 1500×5700 | 3.5-4.5 | 29 | 12.25 | 115 | ZD40 | 23 |
| MQG1864 | 1830×6400 | 5.5-6.4 | 24.23 | 18.5 | 155 | ZD60 | 34.6 |
| MQG1870 | 1830×7000 | 6-7 | 23.91 | 21 | 185 | ZD60 | 36.5 |
| MQG2265 | 2200×6500 | 14-15 | 21.4 | 31 | 380 | ZD70 | 50 |
| MQG2275 | 2200×7500 | 16-18 | 19 | 32.5 | 380 | ZD70 | 63 |
| MQG2470 | 2400×7000 | 26-30 | 17 | 38 | 475 | ZD70 | 70.5 |
| MQG3090 | 3000×9000 | 42-50 | 15 | 65 | 1000 | ZD80 | 156.5 |
