Introduction
Product Description:

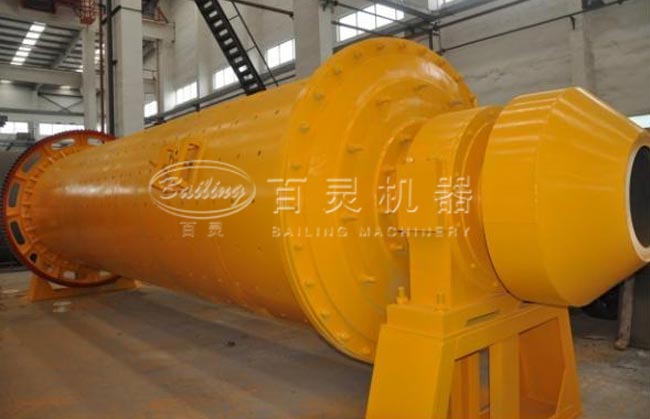

Energy saving ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.
Ball mill mainly consists of feeding part, discharging part, gyre part, transmission part (decelerated machine, small transmission gear, motor, electric control) and so on. The hollow axis adopts cast steel, the lining plate can be replaced, the big gyre gear is made of forging rolling gear, and there is lining plate in the cylinder body, which has favorable abrasion resistance.
Features:
1. low power consumption
2. stable and reliable operation
3. easy maintenance
Energy saving ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.
Ball mill mainly consists of feeding part, discharging part, gyre part, transmission part (decelerated machine, small transmission gear, motor, electric control) and so on. The hollow axis adopts cast steel, the lining plate can be replaced, the big gyre gear is made of forging rolling gear, and there is lining plate in the cylinder body, which has favorable abrasion resistance.
Features:
1. low power consumption
2. stable and reliable operation
3. easy maintenance
Parameter
| Type |
Rotational speed （r/min） |
Balls weight (t) |
Feeding size (mm) |
Output size (mm) |
Capacity (t/h) |
Motor power (kw) |
Weight (t) |
| Ф900×1800 | 42 | 1.4 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| Ф900×2100 | 41 | 1.7 | ≤15 | 0.075-0.83 | 0.7-3.5 | 15 | 3.9 |
| Ф900×3000 | 41 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.5 |
| Ф1200×2400 | 36 | 3.5 | ≤25 | 0.075-0.6 | 1.5-4.7 | 30 | 11.5 |
| Ф1200×2800 | 31 | 6.8 | ≤25 | 0.075-0.6 | 1.5-5 | 37 | 13 |
| Ф1200×4500 | 32 | 5.5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ф1500×3000 | 31 | 6.8 | ≤25 | 0.074-0.4 | 2-7 | 75 | 17 |
| Ф1500×4500 | 27 | 10.5 | ≤25 | 0.074-0.4 | 3.5-8 | 110 | 21 |
| Ф1500×5700 | 27 | 15 | ≤25 | 0.074-0.4 | 3.5-10 | 130 | 24.7 |
| Ф1830×3000 | 26 | 13 | ≤25 | 0.074-0.4 | 4-12 | 160 | 28 |
| Ф1830×3600 | 26 | 15 | ≤25 | 0.075-0.4 | 5-13 | 160 | 33.5 |
| Ф1830×4500 | 26.5 | 17 | ≤25 | 0.075-0.6 | 5.5-20 | 185 | 35 |
| Ф1830×7000 | 26 | 25 | ≤25 | 0.074-0.4 | 6.5-22 | 210 | 36 |
| Ф2100×3600 | 24 | 21 | ≤25 | 0.074-0.4 | 6.5-22 | 185 | 46.8 |
| Ф2200×5500 | 21 | 30 | ≤25 | 0.074-0.4 | 10-20 | 245 | 48.5 |
| Ф2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| Ф2200×7500 | 21 | 33 | ≤25 | 0.074-0.4 | 16-30 | 380 | 56 |
| Ф2400×3000 | 20.6 | 30 | ≤25 | 0.075-0.4 | 15-50 | 245 | 59 |
| Ф2400×4500 | 21 | 33 | ≤25 | 0.074-0.4 | 15-60 | 380 | 65 |
| Ф2700×3600 | 20.6 | 39 | ≤25 | 0.074-0.4 | 20-70 | 400 | 91.3 |
| Ф2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 20-80 | 400 | 94 |
| Ф2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 20-90 | 430 | 102 |
| Ф3200×4500 | 18 | 65 | ≤25 | 0.075-0.4 | According to different technology | 800 | 137 |
| Ф3600×4500 | 17 | 90 | ≤25 | 0.074-0.4 | According to different technology | 850 | 158 |
| Ф3600×6000 | 17 | 110 | ≤25 | 0.074-0.4 | According to different technology | 1250 | 175 |
| Ф3600×8500 | 18 | 131 | ≤25 | 0.074-0.4 | 45.8-256 | 1800 | 252 |
| Ф4000×5000 | 16.9 | 121 | ≤25 | 0.074-0.4 | 45-208 | 1500 | 203 |
| Ф4000×6000 | 16.9 | 146 | ≤25 | 0.074-0.4 | 65-248 | 1600 | 218 |
| Ф4000×6700 | 16.9 | 149 | ≤25 | 0.074-0.4 | 45-252 | 1800 | 238 |
| Ф4500×6400 | 15.6 | 172 | ≤25 | 0.074-0.4 | 54-306 | 2000 | 280 |
| Ф5030×6400 | 14.4 | 216 | ≤25 | 0.074-0.4 | 68-386 | 2500 | 320 |
| Ф5030×8300 | 14.4 | 266 | ≤25 | 0.074-0.4 | 88-500 | 3300 | 403 |
| Ф5500×8500 | 13.8 | 338 | ≤25 | 0.074-0.4 | 108-615 | 4500 | 525 |
