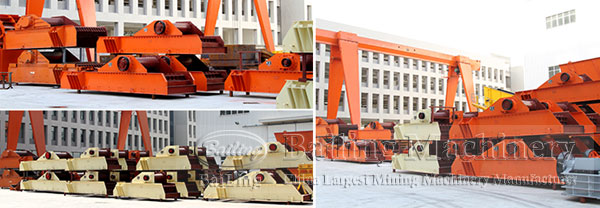

Vibrating feeder

Vibrating feeder

Capacity: 80-600 t/h
Max feeding size: 400-650 mm
Delivery: 15-30 days


Product Description:

Vibrating feeder is used to transfer the large size materials and granular materials from hopper to receiving device uniformly, periodically and continuously,also to screen the materials in the sandstone production line. It is widely used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc.

1. Simple structure, stable vibration, uniform feeding, continuous good performance, adjustable excitation force.
2. Change and control material flow at anytime, easy to operate; Eccentric block is vibration source, low noise, low power consumption, regular performance,without material clash phenomenon.
3. If the cell body is closed, it can prevent the dust pollution.
4. Eccentric block rotates to generate the centrifugal force, makes the screening compartment and the vibrator continuous circular or approximately circular movement.
5. Materials are thrown continuously along the screen and are sent to the discharging port.
