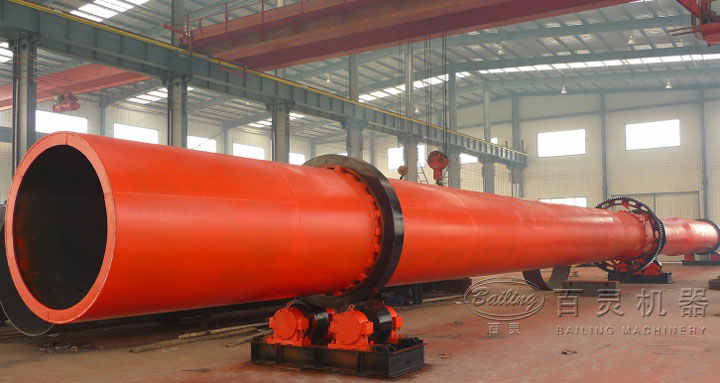

Indirect heat transfer dryer

Indirect heat transfer dryer

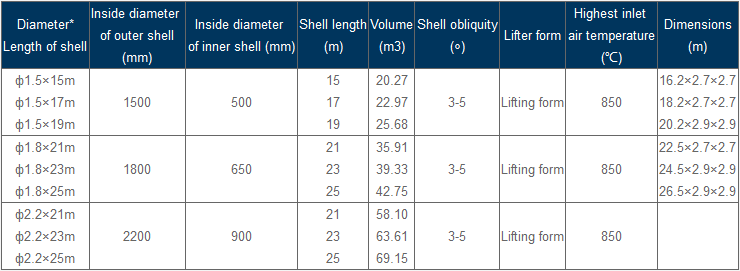

Inside diameter: 1500-2200mm
Outer diameter: 500-900mm
Delivery: 15-30 days


Product Description:

Dryer machine is a kind of dryer with a rotating cylinde which is a little bit incline. it is simply structure, polished manufacture, high capacity, low cinsumption, conveninent transportation and so on.

1. strong overload resistance capacity, large capacity, low fuel consumption, low drying cost;
2. the dryer adopts downstream drying method, hot air enters into the dryer with wet material, which obtains high evaporation intensity by high temperature air; temperature in dryer outlet is low, with high thermal efficiency;
3. the dryer can change operating parameters according to different material properties, with high quality and sufficient heat exchange;
4. the dryer adopts new feeding and discharging devices, putting an end to feeding jam, discontinuity, non-uniform phenomenons of vertical dryer, reducing the load of dust-removing system;
5. the dryer achieves "zero horizontal thrust", greatly reducing the wear of gear wheel;
6. the dryer adopts self-aligning roller device, wheel and roller ring contact each other in a line, thereby greatly reducing wear and power loss;
7.product moisture can be controlled according to user requirements.
