Raymond mill

Raymond mill

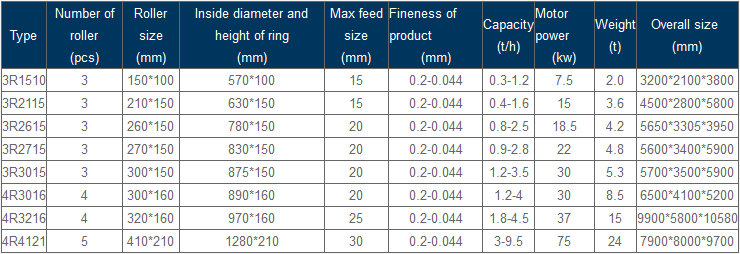

Particle size: 0.2-0.044(mm)
Feeding size: 15-30(mm)
Power: 7.5-75(kw)



Raymond mill is also called Raymond roller mill, which is the commonly used for milling equipment. It is mainly used for fine powder processing of more than 280 kinds of materials such as barite, calcite, feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, insulation materials and non inflammable and explosive minerals with not more than 9.3Mohs hardness and below 6% high humidity in chemical industry, construction industry and other industries. Raymond mill also has other names, such as Raymond pendulum mill and Raymond grinding mill.

Working principle of Raymond mill:

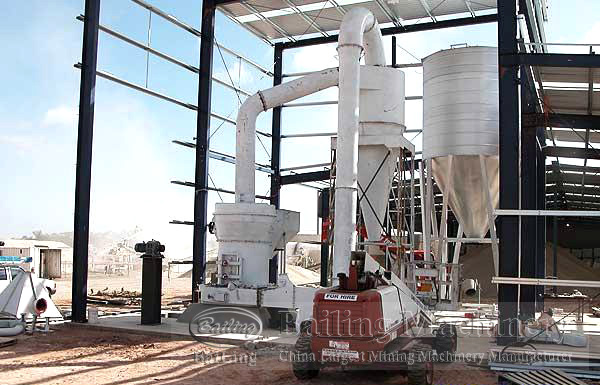

The jaw crusher breaks the bulk materials to the required particle size, the bucket elevator will convey the materials to the storage bin and then the magnetic vibrating feeder will transport the materials to the main body of the Raymond mill or raymond grinding mill uniformly. When the scraper knife and the grinding roller of raymond grinder rotate at the same time, they raise the materials to the space between the grinder roller and ring, forming a plastic layer. Materials grind each other between in the space between the grinding roll and grinding ring of grinding plant. The ground powder is conveyed to the analytical machine by the draught fan and the fine powder with the required fineness will flow to the cyclone collector along with the air flow. Then they are discharged as the finished particles. The unqualified powder is thrown out of the external wall of the raymond grinding mill and rough powder falls into the grinding chamber under the gravity force. The whole airflow system is a closed circulation under the positive and negative pressure.

Product Description:

Raymond mill is a common milling equipment for all kinds of mineral powder production、coal powder production, it is widely used for fine grinding of raw material、gypsum mine、coal, etc.


1.stereochemical structure, less occupied area、complete set, from raw material to final product is an independent production system.
2.final particles are even, sieving rate can reach 99%, which is incomparable.
3.gearing adopts closed gearbox and belt wheel, smooth transmission and reliable.
4.key parts are made of high quality steel, wear-resistant parts are made of high-performance wear-resistant materials, the machine is very wearable, with reliable operation.
5.electric system adopts centralized control, milling workshop  can achieve unattended operation with convenient maintenance
