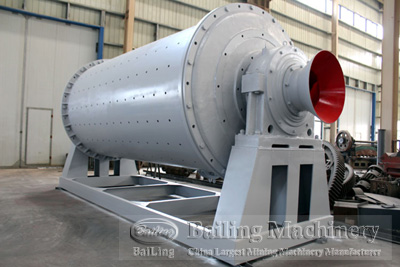

Overflow ball mill

Overflow ball mill

Feeding size: ≤20(mm)
Discharging size: 0.074-0.4(mm)
Power: 18.5-800(kw)


Product Description:

The overflow type ball mill is used to grinding materials in wet condition. Compared with dry process ball mill, the biggest difference is --- its end cover is cone shaped. On the end cover there is only one wave lining plate. Henan Bailing’s ball mill adopts high chrome lining plate, which is wearable, lower noise、high efficiency. The biggest advantage is that it can dress low grade magnetic iron ore with high-precision. t’s widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.
Bearing adopts oil lubrication system, thus help bearing internal dirt cleaning and reduce the bearing attrition during normal operation. Bailing ball mill reduces replacement frequency of easily damaged parts at the most extent. lining plates 、steel balls are made of high chrome steel,which is very wear-resistiing and durable, brings a lot of advantages for ball mill’s maintenacne and working.



1. Main bearing adopts large diameter double biserial roller bearing, easy maintenance, high efficiency.
2. Discharging end adopts cone design, thus strengthen the mill and forces grading of steel balls. More closer to the discharging end, steel balls’ diameter is more smaller, grinding particles are more smaller
3. Adopts overall steel chassis, high precision and easy installation
4. Combined feeder is cancelled, adopts drum feeder, without impact force, thus machine runs smoothly, reduce maintenance frequency, improves efficiency.
