Grid ball mill

Grid ball mill

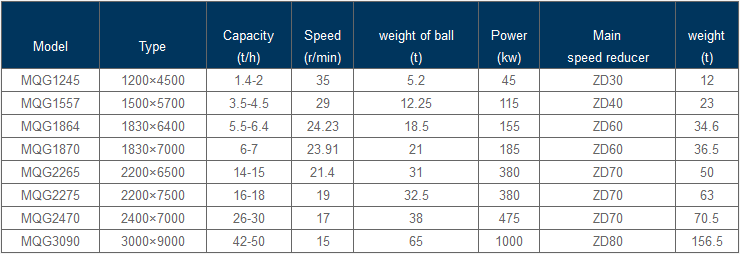

Speed: 15-35(r/min)
Weight of ball: 5.2-65 (t)
Power: 45-1000 (kw)


Product Description:

Bearing adopts oil lubrication system, thus help bearing internal dirt cleaning and reduce the bearing attrition during normal operation. Bailing ball mill reduces replacement frequency of easily damaged parts at the most extent.lining plates,steel balls are made of high chrome steel,which is very wear-resistiing and durable, brings a lot of advantages for ball mill’s maintenacne and working.


1.Antifriction bearing replaces sliding bearing, friction is reduced greatly, start is easier and energy saving.
2.Discharging end adopts cone design, thus increases the volume, and forces grading of steel balls. More closer to the discharging end, steel balls’ diameter is more smaller, thus increases grinding effection, improves the finess of the final product.
3.It adopts grooved ring linings, thus increases the contact surface between the ore and steel balls, enhances the grinding effect and reduce the energy consumption;
4.It adopts overall frame,facilitates the civil construction and equipment installation.
