Introduction
Product Description:

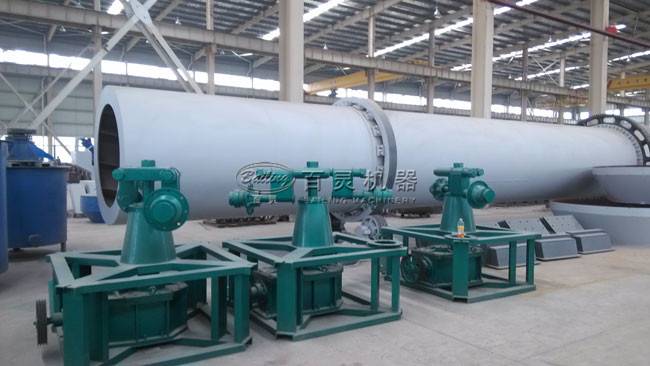

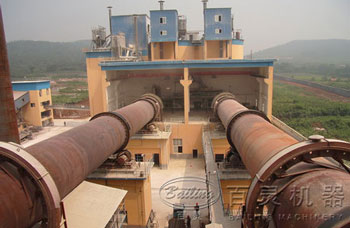

Metallurgy rotary kiln is mainly used in metallurgical industry, steel and iron plants lean iron ore magnetic roasting; chromium, nickel iron oxidizing roasting; refractory material factory roasting high alumina bauxite and aluminum factory roasting clinker, aluminum hydroxide, chemical plant roasting chromium ore, chrome sand etc minerals.
Features:
1. advanced structure,
2. stable operation
3. easy to operate
4. reliable quality,
5. high efficiency and energy saving,
6. safe and environmentally friendly etc.
Metallurgy rotary kiln is mainly used in metallurgical industry, steel and iron plants lean iron ore magnetic roasting; chromium, nickel iron oxidizing roasting; refractory material factory roasting high alumina bauxite and aluminum factory roasting clinker, aluminum hydroxide, chemical plant roasting chromium ore, chrome sand etc minerals.
Features:
1. advanced structure,
2. stable operation
3. easy to operate
4. reliable quality,
5. high efficiency and energy saving,
6. safe and environmentally friendly etc.
Parameter
|
Specification (mm) |
Kiln body size |
Capacity (t/h) |
Rotation speed (r/min) |
Motor power (kw) |
Weight (t) |
Remark | ||
|
Diameter (mm) |
Length (mm) |
Slope (%) |
||||||
| φ1.4×33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 | －－－－ |
| φ1.6×36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 | －－－－ |
| φ1.8×45 | 1.8 | 45 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 | －－－－ |
| φ1.9×39 | 1.9 | 39 | 4 | 1.65-3 | 0.29-2.93 | 30 | 77.59 | －－－－ |
| φ2.0×40 | 2 | 40 | 3 | 2.5-4 | 0.23-2.26 | 37 | 119.1 | －－－－ |
| φ2.2×45 | 2.2 | 45 | 3.5 | 3.4-5.4 | 0.21-2.44 | 45 | 128.3 | －－－－ |
| φ2.5×40 | 2.5 | 40 | 3.5 | 9.0-10.5 | 0.44-2.44 | 55 | 149.61 | －－－－ |
| φ2.5×50 | 2.5 | 50 | 3 | 6.25-7.4 | 0.62-1.86 | 55 | 187.37 | －－－－ |
| φ2.5×54 | 2.5 | 54 | 3.5 | 6.9-8.5 | 0.48-1.45 | 55 | 196.29 | －－－－ |
| φ2.7×42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 | －－－－ |
| φ2.8×44 | 2.8 | 44 | 3.5 | 12.5-13.5 | 0.437-2.18 | 55 | 201.58 |
suspension preheater kiln |
| φ3.0×45 | 3 | 45 | 3.5 | 12.8-14.5 | 0.5-2.47 | 75 | 210.94 | －－－－ |
| φ3.0×48 | 3 | 48 | 3.5 | 25.6-29.3 | 0.6-3.48 | 100 | 237 | outside decomposition kiln |
| φ3.0×60 | 3 | 60 | 3.5 | 12.3-14.1 | 0.3-2 | 100 | 310 | －－－－ |
| φ3.2×50 | 3.2 | 50 | 4 | 40.5-42 | 0.6-3 | 125 | 278 | outside decomposition kiln |
