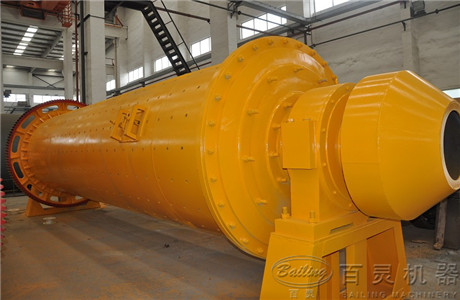

Bearing is one of the key parts of ball mill, from selection, tolerance matching, sealed lubrication of bearings to the assembly, must be comprehensive consideration, to ensure the normal operation of ball mill.

Ball mill bearing installation steps are as follows:
(1) before installation, to detect the size of the shaft, shaft sleeve, and related parts;
(2) the measurement of shaft and shaft sleeve at four o 'clock on the circumference of a circle and the size of the axis at 3 o 'clock;
(3) with the right tools, insert bearing bushing.Through the collar heating, can get tight fit;
(4) push the axial sliding bearing;
(5) in a sealed filled padding and oil seal;
(6) will be sealed in tray sleeve;
(7) installation axle gear ring (first fill maze pick) with grease, counter weight, coupling;
(8) to supply the specified product and check the oil level.

Remove the bearing steps are as follows:
(1) remove the coupling, counter weight, axle gear ring;
(2) remove the seal plate;
(3) drawn from the bearing axis;
(4) using the appropriate disassembly tool, remove the bearing from the shaft sleeve.On the axle housing with screw holes, remove bearing is very convenient.

More detail questions about ball mill, jaw crusher not only for its bearings, welcome consulting Henan Bailing t at 0086-371-67996061.
